The Bridge node in the Fiorano Admin Studio enables you to manage all the bridges that connect the FioranoMQ Server to another MQ server or any other messaging Server. The admin tool enables adding links, adding channels to a link and monitoring the status of every bridge running within the cluster. This module is visible only after the bridge is configured in the Server.

Anchor
_Toc161054963 _Toc161054963

Anchor
_Toc162774055 _Toc162774055

Anchor
_Toc169589077 _Toc169589077

Anchor
_Toc173589245 _Toc173589245

Anchor
_Toc238463894 _Toc238463894

Anchor
_Toc377995872 _Toc377995872

25.9.1 Adding the Bridge to the FioranoMQ Profile

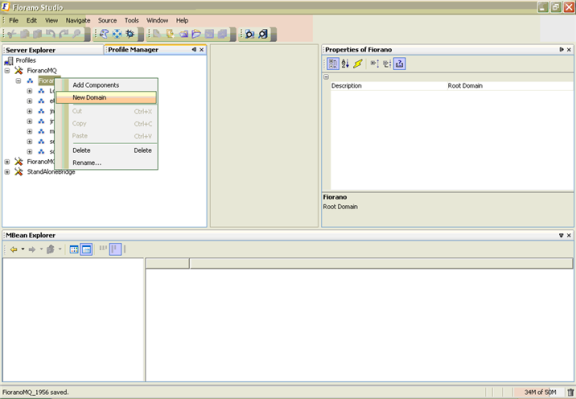

1. In Studio open ProfileManager and open the FioranoMQ profile. Right-click Fiorano and select New Domain as shown below.

2. Name the Domain as Bridge, for User convenience.

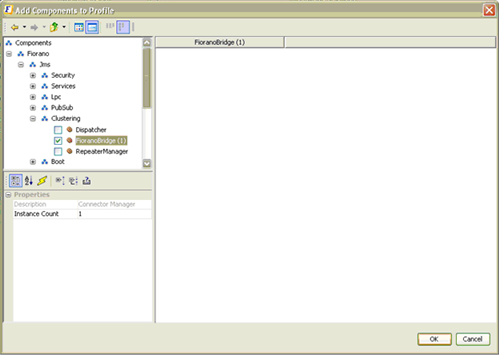

3. Right-click on Bridge (new domain that was added in the previous step) and click on Add Components. Go to Fiorano?Jms?Clustering and select FioranoBridge. Click ok. The FioranoConnectorManager is added to the Bridge.

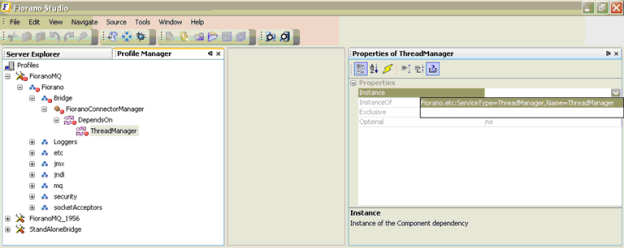

4. Navigate to *FioranoConnectorManager?DependsOn?ThreadManager. By clicking on the *ThreadManager the User can see properties on the right-hand side of studio. By default, instance property will be null. Select the only instance present there. Name the FioranoConnectorManager in properties.

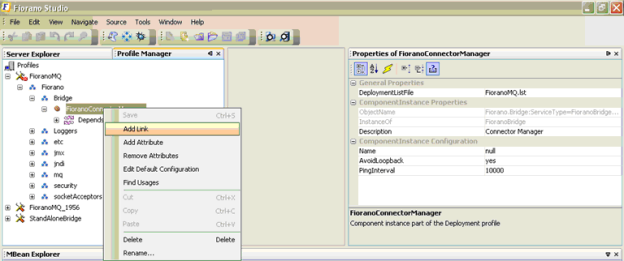

5. Right-click on FioranoConnectorManager and addLink as shown below. Name the link in properties.

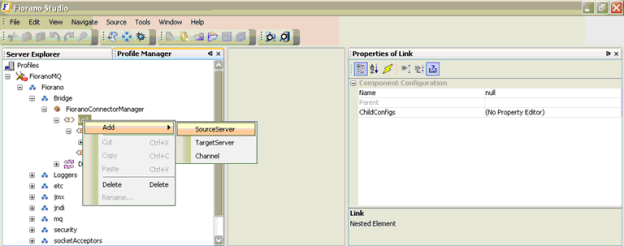

6. Right-click on Link and add source Server, target Server and channel. Add connectionInfo to the source Server and to the target Server. Add source queue and target queue to the channel. Add queueInfo to source queue and target queue. All components added need to be configured. Configuration techniques are available in Chapter: 12 Bridge.

Anchor
_Toc169589078 _Toc169589078

Anchor
_Toc173589246 _Toc173589246

Anchor
_Toc238463895 _Toc238463895

Anchor
_Toc377995873 _Toc377995873

25.9.2 Adding a Link

The administrator can create new links dynamically in a Bridge. This enables the application to send and receive messages on queues created after the bridge has started. A link can contain one or more channels. Information such as the link name, the source and target Servers between which the link needs to be created, the protocol to be used by the connection and login information need to be provided when a new link is added to the Bridge. To add a new link, follow the steps below:

1. Select the Bridge node from the Server Explorer pane.

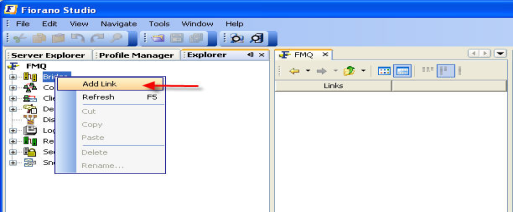

2. Right-click and select the Add Link option from the pop-up menu.

3. The New Link Properties dialog box is displayed.

4. Specify the link properties and click the OK button. The new link is added as a node and shown in the Server Explorer pane.

Anchor
_Toc161054964 _Toc161054964

Anchor
_Toc162774056 _Toc162774056

Anchor
_Toc169589079 _Toc169589079

Anchor
_Toc173589247 _Toc173589247

Anchor
_Toc238463896 _Toc238463896

Anchor
_Toc377995874 _Toc377995874

25.9.3 Removing a Link

The administrator can remove the selected link from the repeater by following the steps below:

1. Select the link to be removed from the Server Explorer pane.
2. Right-click and select Delete from the pop-up menu.
3. The Confirm Object Deletion dialog box is displayed. Click the Yes button. The selected link is deleted and is no longer visible in the cluster.

Anchor
_Toc161054965 _Toc161054965

Anchor
_Toc162774057 _Toc162774057

Anchor
_Toc169589080 _Toc169589080

Anchor
_Toc173589248 _Toc173589248

Anchor
_Toc238463897 _Toc238463897

Anchor
_Toc377995875 _Toc377995875

25.9.4 Starting a Link

To start a link:

Select the link from the Bridge in the Server Explorer pane. Right-click and select the Start Link option from the pop-up menu.

Anchor
_Toc161054966 _Toc161054966

Anchor
_Toc162774058 _Toc162774058

Anchor
_Toc169589081 _Toc169589081

Anchor
_Toc173589249 _Toc173589249

Anchor
_Toc238463898 _Toc238463898

Anchor
_Toc377995876 _Toc377995876

25.9.5 Stopping a Link

To stop a link:

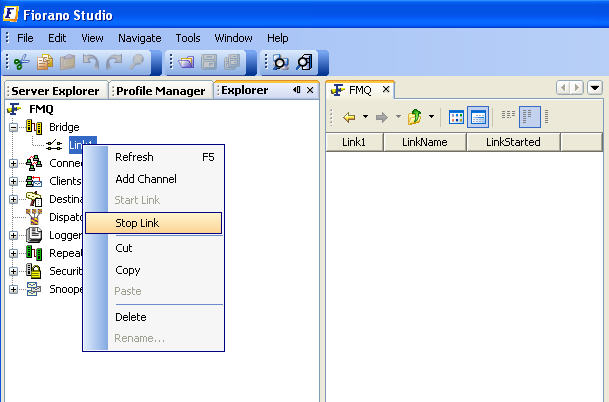

Select the Link from the Bridge in the Server Explorer pane. Right-click the link and select the Stop Link option from the pop-up menu.

Anchor
_Toc161054967 _Toc161054967

Anchor
_Toc162774059 _Toc162774059

Anchor
_Toc169589082 _Toc169589082

Anchor
_Toc173589250 _Toc173589250

Anchor
_Toc238463899 _Toc238463899

Anchor
_Toc377995877 _Toc377995877

25.9.6 Adding a Channel to a Link

The administrator can add channels to a link dynamically. To add a channel to a link the administrator must provide information such as source and target queues. A link can have multiple Channels mapped to different Queues.

1. Expand the Link sub-node from the Bridge node in the Server Explorer pane. The various channels configured within the bridge are displayed.
2. Right-click any of the Channels and select the Add Channel option from the pop-up menu.

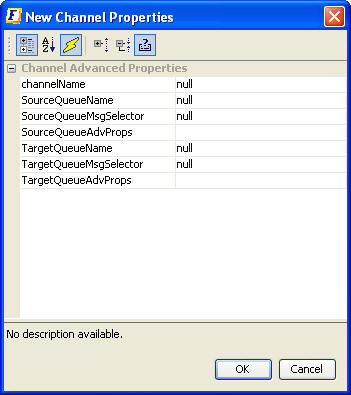

3. The New Channel Properties dialog box is displayed.

4. Specify the properties and Click the OK button. The new channel is added as a node and shown in the Server Explorer pane.

Anchor
_Toc161054968 _Toc161054968

Anchor
_Toc162774060 _Toc162774060

Anchor
_Toc169589083 _Toc169589083

Anchor
_Toc173589251 _Toc173589251

Anchor
_Toc238463900 _Toc238463900

Anchor
_Toc377995878 _Toc377995878

25.9.7 Removing a Channel from a Link

The administrator can remove a channel from a link on a Bridge by following the steps below:

1. Select the channel to be removed from the Server Explorer pane.
2. Right-click and select Delete from the pop-up menu.
3. The Confirm Object Deletion dialog box is displayed. Click the Yes button. The selected channel is deleted and is no longer visible in the cluster.
