Objective

Configure SocketAdapter component as Server in synchronous mode and configure it as Client to invoke the server.

Anchor
_Toc383424158 _Toc383424158

Prerequisites

• Start Fiorano Enterprise Server (FES) and Fiorano Peer Server (FPS)
• Login to eStudio application
• Understand the basic menus and perspectives (panels) in eStudio application

Anchor
_Toc383424159 _Toc383424159

Scenario

Create Socket Server with specific Port number and IP address to listen Socket Client data. Server receives the data that is send by Client. Socket Server writes back the data to Socket Client and indicates the successful write-back process through a status message.

Anchor
_Toc383424160 _Toc383424160

Components used

• Two SocketAdapter components
• Three Display components
• One Feeder component

Anchor
_Toc383424161 _Toc383424161

Setting up the Example

Anchor
_Toc383424162 _Toc383424162

Socket Server Configuration

To configure SocketAdapter component for server, perform the following action in eStudio:

1. Add a new Event Process with name 'SocketRW_Server_Eg'.

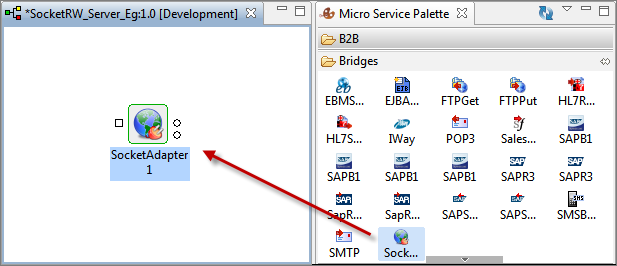

2. Drag the SocketAdapter component from Bridges category in the Micro Service Palette to the Fiorano Orchestrator.


   Figure 1: Adding SocketAdapter compoent to Fiorano Orchestrator

3. Click the SocketAdapter component and do any of the following to rename the component from 'SocketAdapter' to 'SocketServer':

   1. Press F2, change the name and click OK.


      Figure 2: Renaming using Keyboard action 'F2'

   2. Go to Name property under General tab in Properties, change the name and press ENTER.


      Figure 3: Renaming using General Properties


   Info
   Change in name is to distinguish it from the Socket that will be configured for client.

4. Double-click the SocketServer component in the Orchestrator to open Configuration Property Sheet (CPS).
5. Click the Attributes tab and provide the following values:
   1. Select the Create Socket ? check box.
   2. Server IP: 127.0.01 (retain default IP)
   3. Port: 5436 (retain default port)
   4. Decoding Type: None
   This will start SocketServer on peer server machine at port 5436.

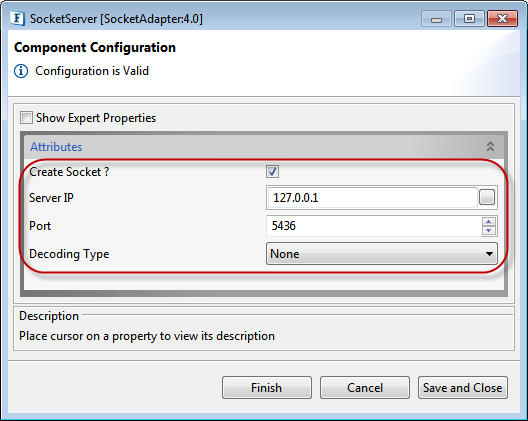

   Figure 4: SocketServer Configuration in CPS

6. Click Finish to save the server configuration.

Anchor
_Toc383424163 _Toc383424163

Socket Client Configuration

To configure SocketAdapter component for client, perform the following action in eStudio:

1. Add a new Event Process with name 'SocketRW_Client_Eg'.
2. Add SocketAdapter component to Fiorano Orchestrator and change the name to 'SocketClient' by following the steps mentioned in Socket Server Configuration section.
3. Open SocketClient component CPS, click the Attributes tab, and provide the following values:
   1. Leave the Create Socket ? check box unchecked.
   2. Server IP: 127.0.01 (same IP as used in Server Configuration)
   3. Port: 5436 (same port as used in Server Configuration)
   4. Decoding Type: None

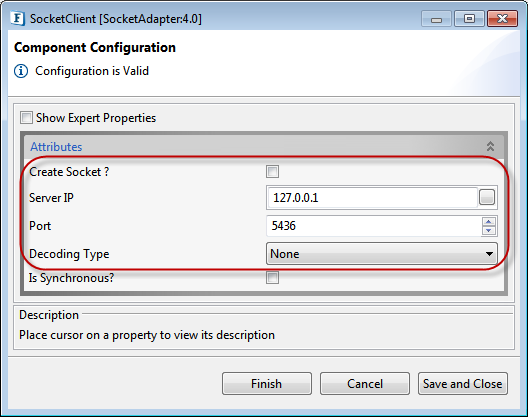

      Figure 5: SocketClient Configuration in CPS

4. Click Finish to save the client configuration.

Anchor
_Toc383424164 _Toc383424164

Composing Server Event Process

1. In the SocketRW_Server_Eg Event Process Orchestrator, perform the following actions:

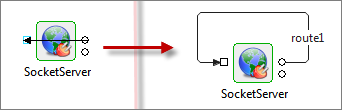

   1. Connect the SocketServer output port to the SocketServer input port


      Figure 6: Connecting SocketServer input port to output port

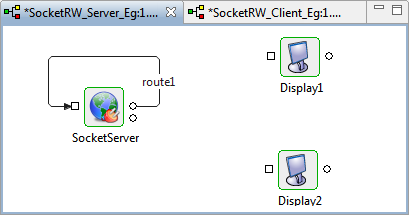

2. Drag two Display components from Util category to the Orchestrator.


   Figure 7: Adding Display components to SocketRW_Server_Eg event process

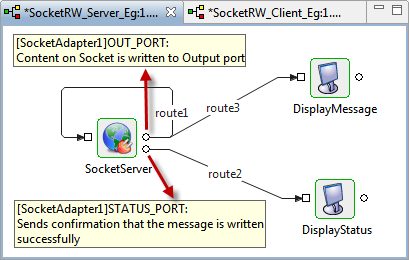

Connect the Display components to the SocketServer and rename them to match the SocketServer output port names in following manner:

1. Connect Display1 to SocketServer OUT_PORT and rename it to DisplayMessage.
2. Connect Display2 to SocketServer STATUS_PORT and rename it to DisplayStatus.


   Figure 8: Connecting Display components to SocketServer

Anchor
_Toc383424165 _Toc383424165

Composing Client Event Process

In the SocketRW_Client_Eg Event Process Orchestrator, perform the following actions:

1. Drag one Feeder and one Display component from Micro Service Palette under Util category.

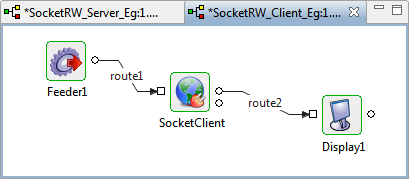

2. Connect the components in the following manner:
   1. Feeder component output port to SocketClient input port.
   2. SocketClient output port to Display component input port.


   Figure 9: Adding Display components to SocketRW_Client_Eg event process

Understanding the Data Flow

Data flows in the following order:

1. Feeder sends data to SocketClient.
2. SocketServer receives the data from ServerClient and displays it in DisplayMessage.
3. SocketServer redirects the data back to SocketClient and displays the successful write-back status in DisplayStatus.
4. SocketClient receives the data back from server and displays it in Display1.

Figure 10: Data flow between SocketServer and SocketClient

Anchor
_Toc383424166 _Toc383424166

Running the Example

Open SocketRW_Server_Eg Event Process Orchestrator and perfrom the following actions:

1. Click Check Resource and Connectivity  icon (or press ALT+SHIFT+C) to check resource and connectivity.
2. Click Run Event Process  icon (ALT+SHIFT+R) to run the event process. DisplayMessage and DisplayStatus windows get open.
3. Switch to SocketRW_Client_Eg Event Process Orchestrator and follow steps 1 and 2 above. Feeder1 and Display1 components get open.

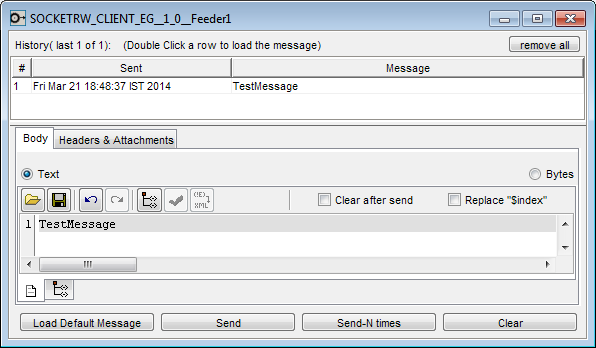

4. In the Client Feeder1 window, replace 'Input Text' with 'TestMessage' and click Send.


   Figure 11: Sending message from Feeder

5. DisplayMessage window displays the message from client that is received by server.

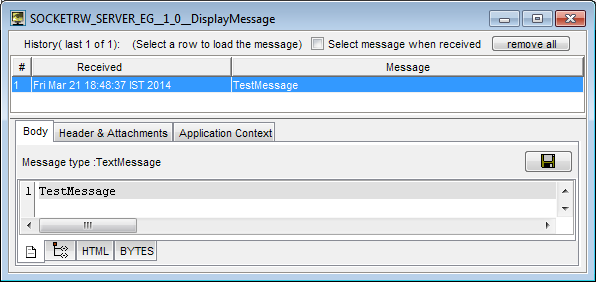

   Figure 12: Displaying Message received from client

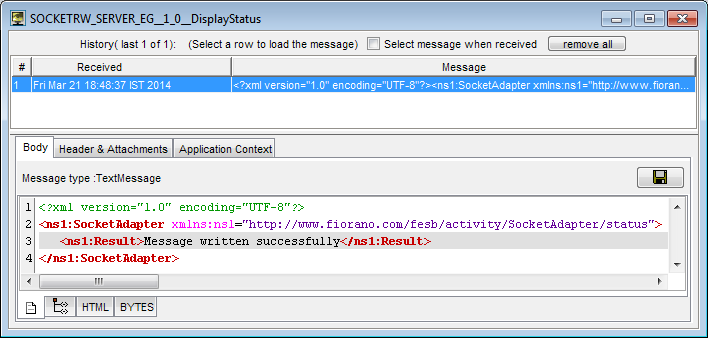

6. DisplayStatus shows the confirmation message 'Message Sent Successfully' when server writes the message back to the client.


   Figure 13: Status message indicating that message is written back to client

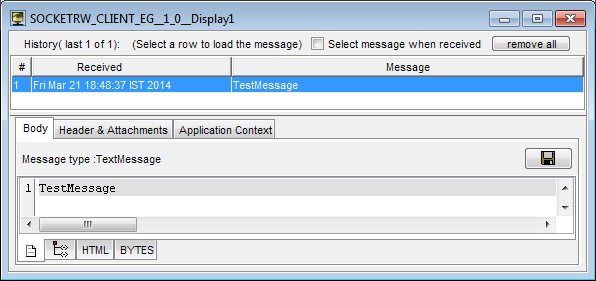

7. Display1 receives the message that is sent back from Server.


   Figure 14: Message sent back by Server, received by the client

Anchor
_Toc383424167 _Toc383424167

Reference

Please note that the options used in this example are minimum, which helps you to get an overview of the application. To explore the other options present in the SocketAdapter, Feeder and Display, refer sections: SocketAdapter, Feeder and Display respectively.
