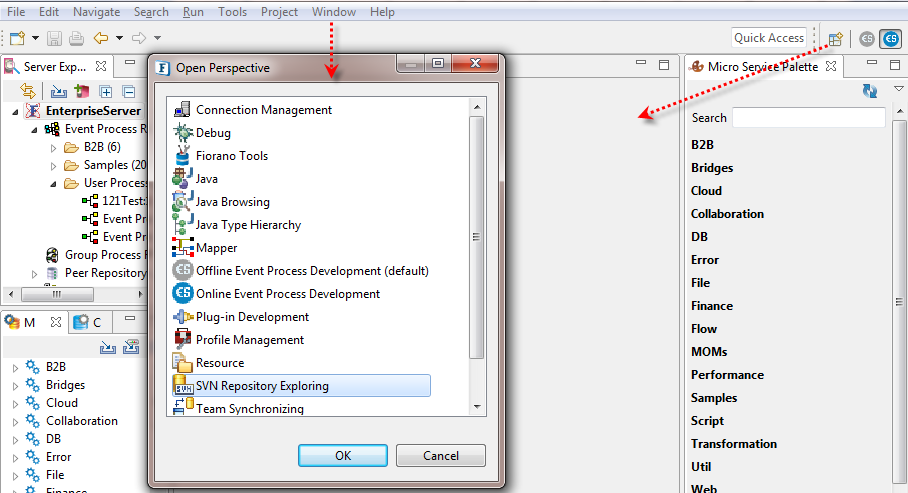

1. Click the Open Perspective button on the upper-right part of eStudio (or Windows > Open Perspective). Select the SVN Repository Exploring option from the list and click OK.

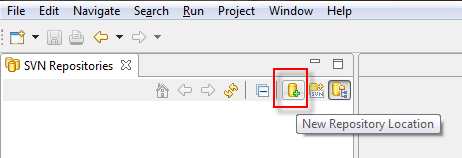

2.  Click the New Repository Location button, if you want to add a new SVN repository location other than the existing ones.

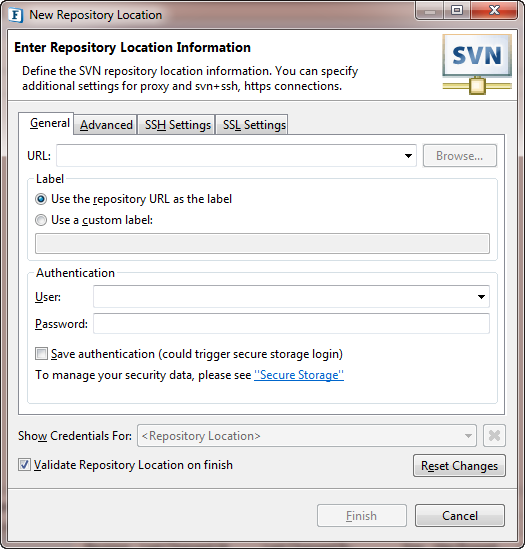

3.  Add details of SVN Repository and SVN credentials in the wizard and click Finish.

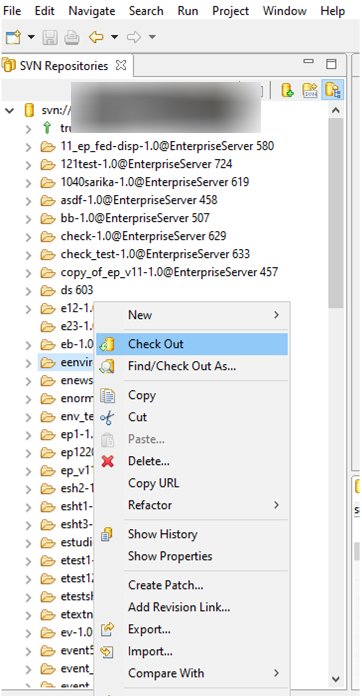

4. Right-click the Event Process to be checkout and click on Check Out option.




5. Navigate to Online Perspective and Refresh the Event Process Repository to see the checked out event process in the Server Explorer view.

Anchor
_Toc386113472 _Toc386113472

Anchor
_Toc386114264 _Toc386114264

Some Useful Features

Below-mentioned are a few useful options to work with the shared Event Process, which are available in its context menu (Team option in the right-click menu of the Event Process):

• Synchronize with Repository: When Event process has changes to be committed or checked out, use this Option to open Synchronize View either in the same perspective or in Team Synchronizing Perspective. The Synchronize view shows the changes to be committed or Checked Out.
• Update to HEAD: Used to update the event process to its current revision in the SVN repository. The changes that are made can be identified by a Dirty Flag that can be set using Label Decorations in Preferences refer section below.
• Update to Version: Used to update the event process to a particular revision from SVN repository.
• Show History: Shows the history of the Event Process commits.
• Revert: Used to Revert the changes made to Event Process. Note: The other options like Update to Revision, Revert and other options that change the contents of the Event process project will display 'out of sync' in the title of the EP. Just click on the Orchestration Editor of the Event process to sync.

  Image Added

Anchor
_Toc386113473 _Toc386113473

Anchor
_Toc386114265 _Toc386114265

Update to HEAD

As briefed earlier, this Option is used to update the event process to its current revision in the SVN repository. As shown in the below figure the Event Process2 has some local changes, which can be identified by the Dirty Flag.

Image Added

After choosing the Update to HEAD option, the Event Process is shown as out of sync as shown in the below figure.

Image Added

Click inside the Event process's Orchestration Editor so that the UI gets updated and the Event process gets in Sync with updated project; "Out of Sync" text disappears from the title.

Image Added

Anchor
_Toc386113474 _Toc386113474

Anchor
_Toc386114266 _Toc386114266

SVN Label Decorations

The Label of the Event Process Project Name which is shared in SVN Repository can be customized to include/exclude various attributes such as Dirty flag, Revision Info, author, date, URL.

For example, to show the revision number (which helps in identifying revision from the Server Explorer itself) of an Event Process project next to its name in the Server Explorer View, perform the following actions:

1. Go to Window menu and click Preferences.

   Image Added

2. In the Preferences window, navigate to Team > SVN > Label Decorations.Under Text tab in the Label Decorations section, change the value of Project Format to the following and click Apply:
   {dirty_flag}{name} [revision {revision}]

   Image Added

3. The Event Process in the Server Explorer panel appears in the format as applied.

   Image Added

4. Some useful variables that can be used to display in Event Process name by amending Project Format values are:
   • {author} for the author of the revision.
   • {url_short} for the URL of the project in SVN repository (File_transfer-1.0@EnterpriseServer as it was appearing previously in the example).
   • {date} for the modification date and time of the revision.
