The administrator can create, manage and manipulate Users and Groups through the Security node. The administrator can change User passwords as well as add Users or Groups to other existing Groups.

25.5.1 Managing Users

The Users sub-node displays the list of all Users whose identity is known to the server. Fiorano has admin, ayrton, and anonymous as its default users. The Administrator can create and delete Users, as well as change their passwords. User properties can be viewed through the Properties pane.

25.5.2 Adding a New User

The administrator can create Users and manage them through the Server Explorer. The administrator can create new Users through the Security node as well as through the Users sub-node. Clicking on the Users sub-node displays the list of all Users whose identity is known to the server along with their connection status. The connection status informs the administrator whether or not that particular User is currently connected to the FioranoMQ Server. The administrator can create new Users by employing either of the methods described below:

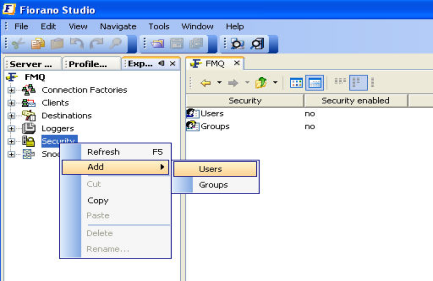

Method 1: From the Security node

The Server Explorer pane shows the Security node, which enables an administrator to add new Users to the existing User list. To create a new User, follow the steps below:

1. Select the Security node from the Server Explorer.
2. Right-click and select Add > user from the pop-up menu.

3. The Admin Studio Input dialog box is displayed. Enter the New User Name and click the OK button.

A new User is created with the password as the username of the User.

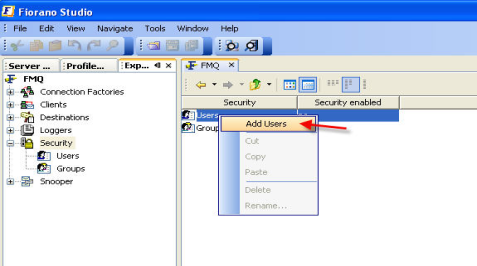

Method 2: From the Users sub-node

1. From the Users sub-node, right-click and select Add user from the pop-up menu.

2. The Admin Studio Input dialog box is displayed. Enter the Username and click the OK button. The new User will be added to the list of pre-existing Users.

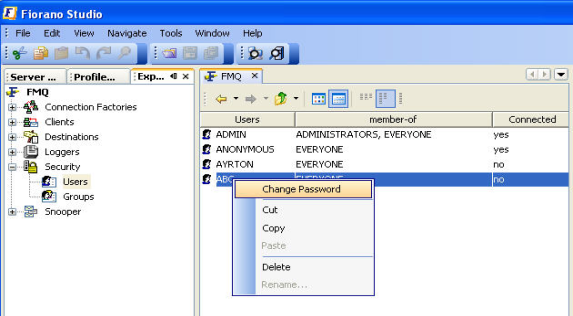

25.5.3 Changing User Password

The administrator can change the User password by following the steps given below:

1. Select the Users sub-node. Select the name of the User whose password is to be changed and right-click the mouse.
2. Select Change Password from the pop-up menu and the Change Password dialog is displayed.

3. Provide the old password and the new password and click the OK button.

Anchor
_Toc161054936 _Toc161054936

Anchor
_Toc162774028 _Toc162774028

Anchor
_Toc169589050 _Toc169589050

Anchor
_Toc173589218 _Toc173589218

Anchor
_Toc238463867 _Toc238463867

Anchor
_Toc377995845 _Toc377995845

25.5.4 Removing a User

The administrator can remove Users from the User list.
To remove a User, follow the steps below:

1. Select the Users sub-node from the Server Explorer pane.
2. Select the name of the user to be deleted. Right-click and select Delete from the pop-up menu.
3. The Confirm Object Deletion dialog box is displayed. Click the Yes button.

The selected User is deleted and is removed from the list of Users.

Anchor
_Toc161054937 _Toc161054937

Anchor
_Toc162774029 _Toc162774029

Anchor
_Toc169589051 _Toc169589051

Anchor
_Toc173589219 _Toc173589219

Anchor
_Toc238463868 _Toc238463868

Anchor
_Toc377995846 _Toc377995846

25.5.5 Managing Groups

The Groups sub-node displays the list of Groups on the server. The administrator can create or remove a Group. By default, all Users and Groups are members of the 'everyone' group.

Anchor
_Toc161054938 _Toc161054938

Anchor
_Toc162774030 _Toc162774030

Anchor
_Toc169589052 _Toc169589052

Anchor
_Toc173589220 _Toc173589220

Anchor
_Toc238463869 _Toc238463869

Anchor
_Toc377995847 _Toc377995847

25.5.6 Adding a New Group

The administrator can create Groups and manage them through the Server Explorer. The Server Explorer pane shows the Security node, that enable the administrator to add new Groups to the existing Group list. FioranoMQ, by default, is bundled with a special group called everyone, which includes all users as its members. The Groups sub-node displays the list of Groups on the server. The administrator can create or remove a Group. The administrator can create a new group by employing either of the methods described below:

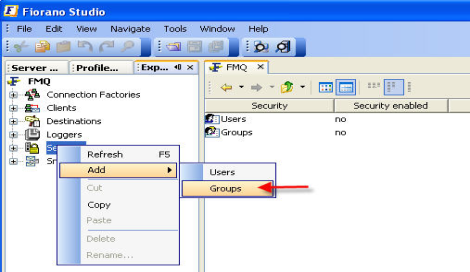

Method 1: From the Security node:

1. Select the Security node from the Server Explorer.
2. Right-click and select Add > group from the pop-up menu.

3. The Admin Studio Input dialog box is displayed.

4. Enter the Group name and click the OK button. The new Group is added to the Group list .

Method 2: From the Groups sub-node:

1. From the Groups sub-node, right-click and select Add Group from the pop-up menu.

2. The Admin Studio Input dialog box is displayed.

3. Enter the Group name and click the OK button. The new Group is added to the list of Groups.

Anchor
_Toc161054939 _Toc161054939

Anchor
_Toc162774031 _Toc162774031

Anchor
_Toc169589053 _Toc169589053

Anchor
_Toc173589221 _Toc173589221

Anchor
_Toc238463870 _Toc238463870

Anchor
_Toc377995848 _Toc377995848

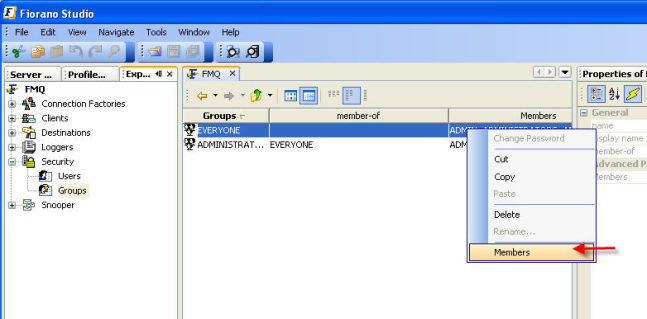

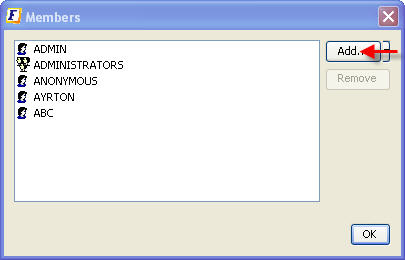

25.5.7 Adding a Member to a Group

The administrator can add a User or a Group as a member to an existing Group. To add a User or a Group to an existing Group, follow the steps below:

1. Select the Groups sub-node from the Server Explorer pane.
2. From the Properties pane, go to the members property. Click the ellipsis to show the members dialog box. The same dialog can be opened by double clicking on the Groups node.

3. Select the Add button to show the names of all Groups and Users that are not present in the Group.

4. Select the Users and/or Groups to be added to this Group and click the OK button.

5. Click the Close button.

Anchor
_Toc169589054 _Toc169589054

Anchor
_Toc173589222 _Toc173589222

Anchor
_Toc238463871 _Toc238463871

Anchor
_Toc377995849 _Toc377995849

25.5.8 Removing Member from Group

The administrator can remove a User or a Group member from an existing Group by following the steps below:

1. Select the Groups sub-node.
2. From the Properties pane, go to the member's property. Click the ellipsis to display the members dialog box. The same dialog can be opened by double clicking on the Groups node.
3. Select the name of the User to be removed from the Group. Click the Remove button.
4. Click the Close button.

Anchor
_Toc161054941 _Toc161054941

Anchor
_Toc162774033 _Toc162774033

Anchor
_Toc169589055 _Toc169589055

Anchor
_Toc173589223 _Toc173589223

Anchor
_Toc238463872 _Toc238463872

Anchor
_Toc377995850 _Toc377995850

25.5.9 Removing a Group

The administrator can remove Groups from the Group list.

To remove Groups from the Group list follow the steps below:

1. Select the Groups sub-node. Select the name of the group to be deleted and right-click the mouse.
2. Select Delete from the pop-up menu.
3. The Confirm Object Deletion dialog box is displayed. Click the Yes button.

The selected Group is deleted and is no longer visible in the Group list.
